Docker EXPOSE vs Ports: What is the Difference?

In Docker, mixing up the ports and expose directives in your configuration files can quickly lead to broken container communication or unintended security risks. While both options define how network ports are handled, they serve two completely different purposes in a Docker network.

In this article, we will compare ports and expose side-by-side. We will look at exactly how they work, break down their real-world use cases, and provide practical configuration examples so you know precisely when to use each one.

Understanding Docker Networking Baselines

To understand the difference between ports and expose, you must first understand how Docker manages network boundaries.

By default, when you spin up a container or a group of services using a docker-compose.yml file, Docker isolates them entirely from your host machine (your laptop or server) and the public internet. They are placed inside an isolated virtual network specific to that project. The infographic below visualizes this core concept.

Open larger view

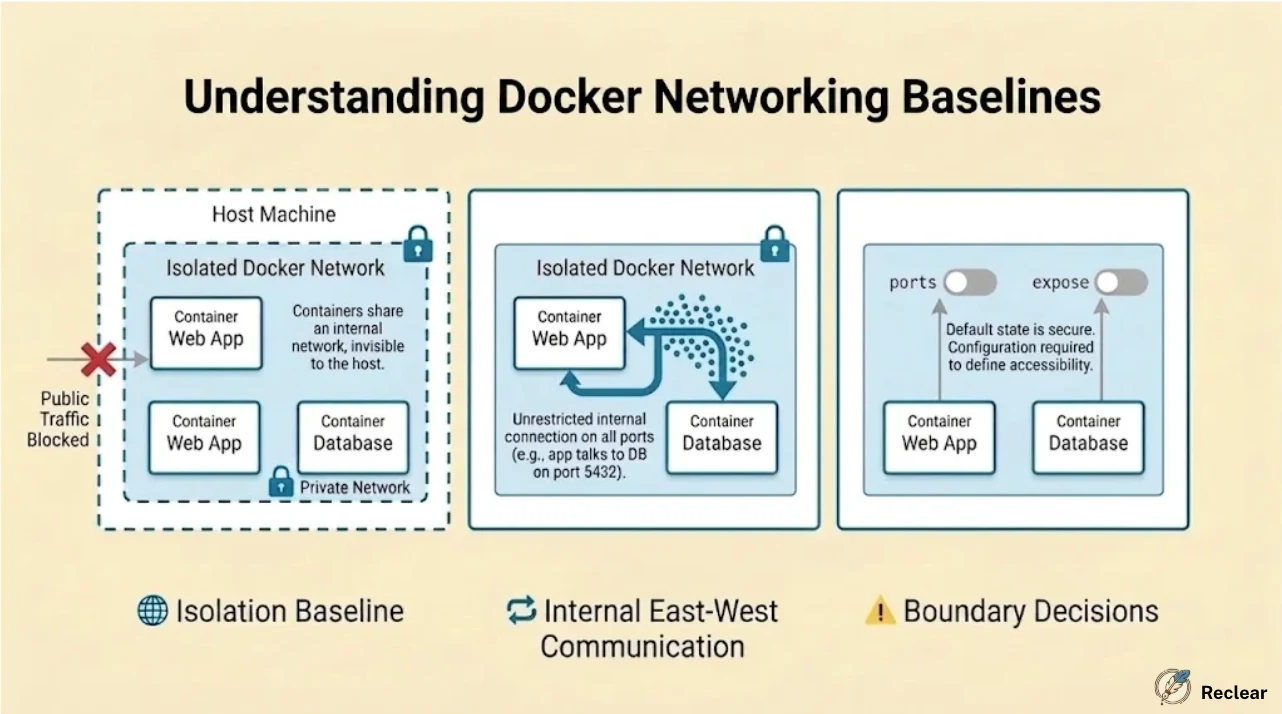

Referencing the visualization above, we can break Docker’s network baseline into three distinct operating phases:

1. Isolation Baseline: As the first panel illustrates, Docker defaults to security. A robust boundary (a 'Private Network') surrounds the containers, blocking all public or local host traffic trying to enter. The containers share an internal network that is invisible to the host by default.

2. Internal East-West Communication: The second panel shows the magic that happens inside that bubble. Containers on the same network can communicate freely and seamlessly on all internal ports. For example, a web application container can connect to a database container on its standard port (like 5432 for PostgreSQL) using the container name. No ports need to be 'opened' to the host machine for this to work.

3. Boundary Decisions: The final panel represents the decision point. The default state is secure. When you decide to move away from this secure baseline, you use configuration switches (ports or expose) to explicitly define boundary accessibility either to allow public traffic or to refine internal access.

The ports and expose directives are the tools you use to manipulate this secure boundary, but they open those network doors for completely different audiences.

The Ports Directive (External Access) Explained

The ports directive is the configuration switch you turn on when you want to open your containers to the outside world. If you need to access an application container from your local host machine’s web browser (via localhost) or expose a service to public internet traffic, you must use ports.

When you specify a port under this directive, Docker performs port mapping (also known as port forwarding). It intercepts traffic hitting a specific port on your physical host machine and routes it directly into a specific port inside your isolated Docker container.

The syntax for mapping ports in a docker-compose.yml file follows a strict pattern: HOST_PORT:CONTAINER_PORT.

• Host Port: The entry point on your actual laptop or server. This is the port you type into your browser or API client (e.g., localhost:8080).

• Container Port: The private internal port that your application is actually listening on inside its isolated environment.

Consider a scenario where you are running a standard Nginx web server. Internally, the Nginx process naturally listens on port 80. However, you might already have another service running on your machine using port 80, or you simply want to access it via port 8080 locally.

Here is how you write that configuration cleanly:

version: '3.8'

services:
  web_server:
    image: nginx:latest
    container_name: reclear_web_app
    ports:
      - "8080:80" # Maps public Host Port 8080 to private Container Port 80

When you execute docker compose up with this file, Docker builds a bridge across your network boundary. If an external user navigates to http://localhost:8080, the Docker daemon catches that request and transparently hands it over to port 80 inside the web_server container.

Without this explicit ports definition, the application remains safely locked away inside the virtual network, completely inaccessible to your browser.

The Expose Directive (Internal Documentation) Explained

If the ports directive is a wide-open bridge to the outside world, the expose directive is an internal blueprint.

The biggest misunderstanding engineers have when starting out with Docker is assuming that expose opens ports to their host machine's browser. It does not. If you configure expose: - "8080", navigating to localhost:8080 will result in a connection error.

Instead, the expose directive does two things:

1. It acts as documentation: It explicitly states which ports the containerized application is listening on at runtime for anyone reading your configuration file.

2. It flags ports for internal networks: It informs the Docker daemon and specialized infrastructure tools (like reverse proxies or orchestration platforms) that this port is ready for container-to-container communication.

The primary use case for expose is security through network isolation. In a multi-container stack, you rarely want every service accessible to the public internet.

For example, a database container needs to talk to your backend web application, but it should never be directly reachable by an external user. By using expose, you keep the database completely shielded from host-level networks while still allowing linked internal services to access it.

Let’s look at a secure, real-world multi-container setup. Here, we have an API backend container that needs to access a private MongoDB database.

version: '3.8'

services:
  web_api:
    image: node:18
    container_name: reclear_api
    ports:
      - "3000:3000" # Publicly accessible at http://localhost:3000

  database:
    image: mongo:latest
    container_name: reclear_db
    expose:
      - "27017" # Securely exposed ONLY to the web_api service

In this configuration, Docker creates a distinct separation of access:

• The Public Rule: The web_api container uses ports. Traffic from the host machine on port 3000 safely maps directly inside the Node.js application.

• The Private Rule: The database container uses expose. The web_api container can connect seamlessly to MongoDB using the connection string mongodb://reclear_db:27017. However, if you try to connect your local desktop database client directly to localhost:27017, the connection will be blocked.

Using expose here provides zero-overhead internal communication while preventing accidental public data exposure.

Key Differences Between Ports and Expose

The table below summarizes the key differences between ports and expose:

A Real-World Hands-On Walkthrough of Ports and Expose

To solidify how ports and expose directives operate in a running environment, let’s deploy a standard two-tier application stack using Docker Compose. We will spin up a public-facing Nginx web frontend and a private backend PostgreSQL database to verify external access and internal isolation on your machine.

Save the following configuration as docker-compose.yml:

version: '3.8'

services:
  web:
    image: nginx:alpine
    container_name: reclear_frontend
    ports:
      - "8080:80"  # Opens access to the host machine
    depends_on:
      - db

  db:
    image: postgres:15-alpine
    container_name: reclear_backend
    expose:
      - "5432"  # Explicitly documents internal port access
    environment:
      POSTGRES_PASSWORD: secure_reclear_password

Step1: launching the Infrastructure

Start the application stack in detached mode by running the following command in your terminal:

docker compose up -d

Step 2: Validating External Host Access (ports)

Open your local web browser and navigate to http://localhost:8080. You will instantly see the default Nginx welcome page.

This connection succeeds because the ports directive explicitly built a network bridge from your host machine's port 8080 to the container's internal port 80.

Step 3: Verifying Host Isolation (expose)

Next, attempt to check if the PostgreSQL database is reachable from your host machine using a standard network ping tool like Netcat (nc) or a database client pointing to localhost:5432:

nc -zv localhost 5432

The Result: The connection will fail or time out. Even though the database container is actively running and listening on port 5432 internally, the expose directive prevents the host network from crossing the container boundary.

Step 4: Testing Inter-Container Connectivity

To prove that internal communication works perfectly across the expose boundary, we can jump inside the running frontend web container and check its connection to the database.

Execute a shell inside the frontend container:

docker compose exec web sh

Once inside the container terminal, run a quick network check against the database service name on port 5432:

nc -zv db 5432
# db (172.21.0.2:5432) open

The Result: You will receive a successful connection message (open). Because both services reside on the default Docker Compose network, the frontend has total access to the database via its documented internal port.

If you modify the docker-compose.yml file, entirely comment out or delete the lines for expose: - "5432", and recreate the containers, running the internal test inside the web container will still succeed.

This proves a vital operational truth: modern Docker networks automatically allow unrestricted container-to-container communication on all ports. The expose directive is not a firewall toggle for internal traffic; it functions purely as an explicit, executable architectural blueprint for developers and automated proxy configurations.

Common Mistakes & Troubleshooting

When working with Docker port configurations, things don't always go according to plan. Here are the two most common pitfalls developers face and exactly how to resolve them.

1. Port Portals: Pinging "Exposed" Ports Successfully

A common point of confusion occurs when a developer tests an expose-only service from their host machine using a tool like Netcat (nc), only for the connection to unexpectedly succeed:

nc -zv localhost 5432
# Connection to localhost port 5432 [tcp/postgresql] succeeded!

If the expose directive isolates the container from the host, why did the connection succeed?

The Root Cause: You have a port collision on your host machine. Another running container or a local background process (like a native PostgreSQL installation running on your laptop) has already mapped itself to host port 5432 using the ports directive.

When you check your active containers using docker ps, you will likely find a completely different container mapping traffic like this:

0.0.0.0:5432->5432/tcp

Your expose-only container is still perfectly secure and isolated. The networking tool is simply reaching a completely different application that took ownership of that host port first. To fix this confusion, stop the conflicting project container using docker stop [container_name].

2. The Redundant Configuration Habit

Another frequent mistake found in beginner configuration files is defining a port in both the ports and expose arrays simultaneously:

# Avoid this redundant pattern
services:
  web:
    image: nginx:alpine
    expose:
      - "80"
    ports:
      - "8080:80"

The ports directive inherently opens the container to the host network and reveals the port internally to the Docker virtual network. Declaring the same container port inside the expose block adds absolutely no functional value or extra performance benefits. It simply clutters your configuration file. Keep your files clean: if you use ports, delete expose.

Key Takeaways

The ports directive is built specifically for external traffic, creating a direct bridge that maps a host machine port to an internal container port so you can access your applications via localhost. Conversely, the expose directive functions primarily as an operational blueprint, documenting internal container ports without opening any access doors to your laptop or the public internet. Because modern Docker networks automatically allow unrestricted container-to-container communication on the same virtual network, utilizing expose is entirely optional for internal data flow. To maintain production-grade security and avoid messy local port collisions, you should keep your sensitive data layers isolated behind default network boundaries and strictly use ports for your public-facing entry points.
